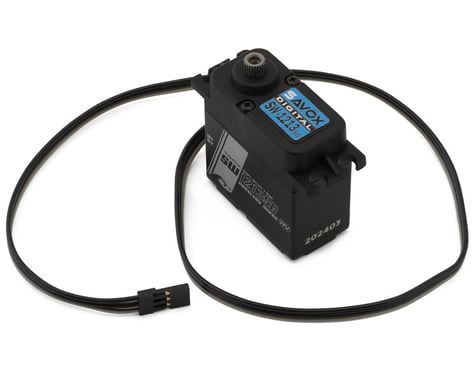

Savox SW-1213SG High Torque Waterproof Steel Gear Digital Servo (High Voltage)

Servo Overview:

Savox SW-1213SG High Torque Waterproof Steel Gear Digital Servo. This optional servo is engineered for durability and high performance, making it ideal for Monster Trucks and Crawler applications where a slightly taller servo can be installed. Featuring a waterproof design rated to IP67 standards, this servo ensures a reliable performance even in harsh conditions. Its precision steel gears deliver incredible torque, while the aluminum center case provides efficient cooling. Designed for ease of use, it operates directly on 7.4V without requiring an external BEC, making it both powerful and convenient.

Note: This servo is taller than standard size servos. Please verify that the dimensions of this servo will suit your application prior to purchase.

Features:

• IP67 waterproof rating for tough conditions
• Precision steel gears for high torque and durability
• Soft Start feature for smoother operation
• Sanwa SSR compatibility for precise control
• Operates directly on 7.4V without an external BEC
• Center aluminum case for efficient cooling
• Nylon composite top and bottom case for added strength
• Precision ball bearings for smooth performance
• Ideal for Monster Trucks and Crawlers
• Taller servo design for versatile applications

Specifications:

• Input Voltage: 7.4-8.4V
• Speed:
  • @7.4V: 0.16sec/60°
  • @8.4V: 0.14sec/60°
• Torque:
  • @7.4V: 527.7oz-in
  • @8.4V: 583.3oz-in
• Pulse/Frequency: -
• Motor Type: Coreless
• Output Shaft: 25T
• Gear Material: Steel
• Dimensions: 1.6x0.81x1.81in (40.6x20.7x46.1mm)
• Servo Lead Length: -
• Weight: 3.27oz (83g)

Includes:

• (1) SW-1213SG High Torque Waterproof Steel Gear Digital Servo
• (4) Composite Servo Horns
• Mounting Hardware
