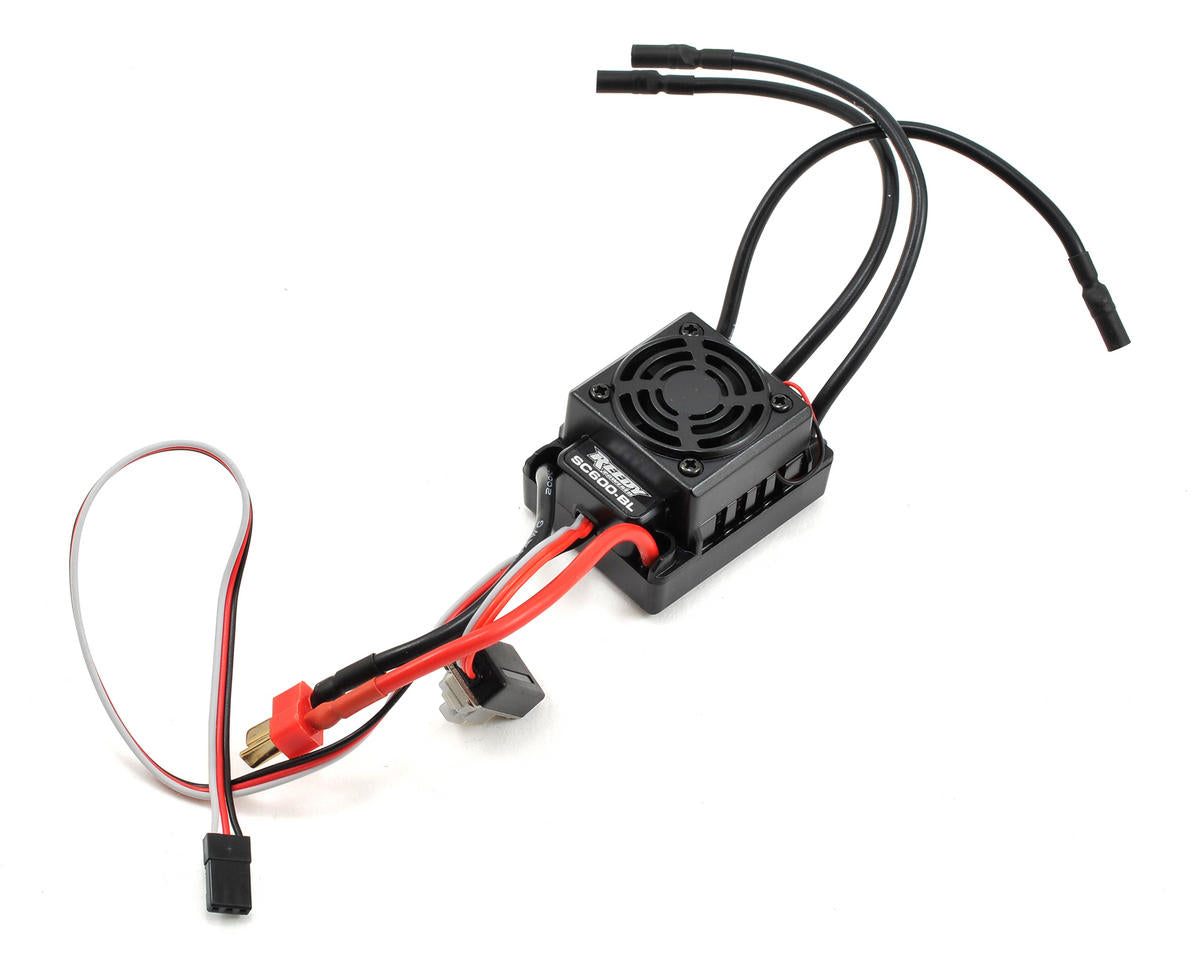

This is the Reedy SC600-BL Sensorless Brushless 2S-3S ESC. Reedy’s SC600-BL Brushless ESC is water-resistant for maximum reliability and features a compact footprint that allows for easy installation in most 1/10 vehicles. The latest electronics technology along with the design and engineering experience that is responsible for 29 World Championship titles has been incorporated into its design.
The SC600-BL is standard equipment in many of Team Associated’s 1:10 scale RTR vehicles and is the logical choice for first-time drivers thanks to its ease of setup and no-nonsense forward/brake/reverse operation. Expert drivers will enjoy the SC600-BL’s track-tested precision brake and throttle feel. When paired with Reedy brushless motors, a potent combination of power and efficiency is created, resulting in quick acceleration, high top speeds, generous run times, and more fun!
Features:
- LiPo low-voltage cutoff protection
- LiPo cell auto-detect
- Fully proportional brakes
- Durable case with aluminum heat sink
- Pre-wired cooling fan
- Water-resistant
- Heavy duty silicone wires
- Low-resistance T-plug connector
- 3.5mm motor connectors
Specifications:
Cells: 2-3 LiPo, 6-9 NiMH
Suggested Applications: 1:10 buggy, truck, touring car
Resistance: 0.0012 ohm
Brakes: Proportional
Motor Limit 2S LiPo, 6-7 NiMH: 3900kV
Motor Limit 3S LiPo, 9 NiMH: 3300kV
Reversible: Yes
Low Voltage Cutoff: Yes, with Cell Auto-Detect
Dimensions (mm): 48.5x38x32mm
Weight: 90g (3.2oz)
Power Wires: 14-gauge silicone
Connector Battery: T-plug
Motor: 3.5mm sockets
