Power HD TR-5 Mini Waterproof Servo 8.0kg 0.07sec@7.4V

Power HD TR-5 Mini Waterproof Servo 8.0kg 0.07sec@7.4V

Regular price
$59.99
Sale price
$59.99
Regular price
Sold out
Unit price
per

SKU:PHDTR-5

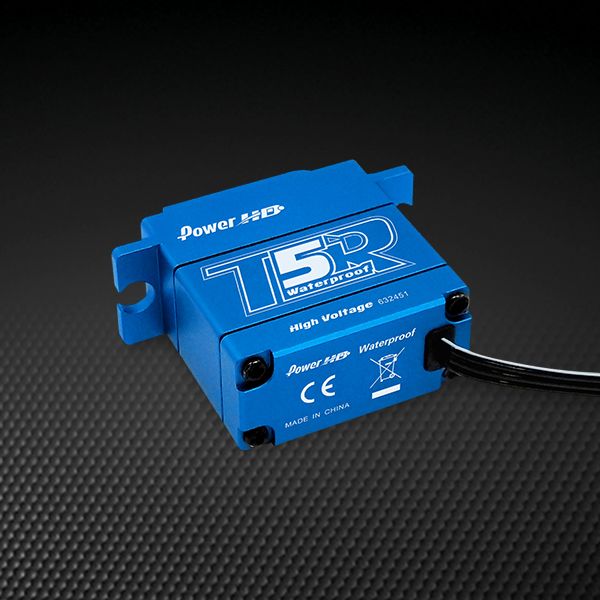

Mini waterproof servo TR-5, specific for Traxxas 1/16 vehicles. Having compatibility with high voltage 6V-8.4V, at 7.4V input the servo pulls up to 8.0kg-cm of torque at a speed of down to 0.07s. A long receiver wire and mini size ensures the servo is a direct fit in Traxxas 1/16 vehicles. The TR-5 servo comes with a 25T metal spline and special gaskets make it waterproof for go-everywhere capabilities.

Specifications
Torque(4.8V): 3.8 kg-cm (52.8 oz/in)
Torque(6.0V): 6.0 kg-cm (83.3 oz/in)
Torque(7.4V): 8.0 kg-cm (111.1 oz/in)
Speed: 0.11 sec (4.8V)
0.09 sec (6.0V)
0.07 sec (7.4V)
Operating Voltage: 4.8 ~ 8.4 DC Volts
Spline: 25T
Connector Wire Length: 350mm / 13.75"
Case Colour: Blue
Weight: 35.0g (1.23 oz)
Gear Type: Metal
Operating Temperature: -20°C ~ 60°C
Working frequency: 1520 micro seconds / 50hz
Size: 29.5x14.0x31.4mm (1.16x0.55x1.24")
