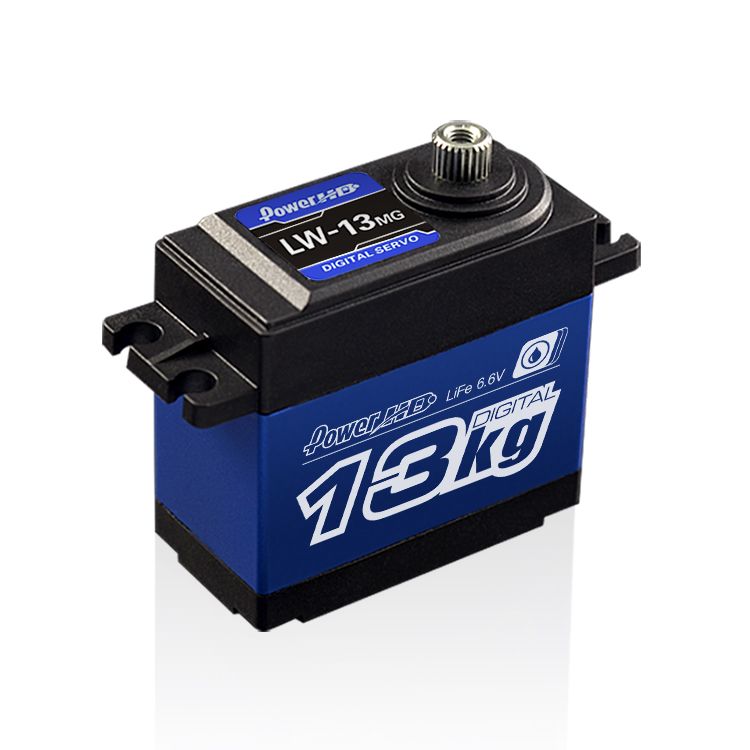

Power HD Waterproof Digital Servo 13KG 0.12sec@6.0V
Quantity:
Pickup available at 57 Simcoe Street South
Usually ready in 1 hour
Power HD Waterproof Digital Servo 13KG 0.12sec@6.0V
57 Simcoe Street South
Pickup available, usually ready in 1 hour
57 Simcoe Street South
Basement Unit
Oshawa ON L1H 4G4
Canada
Choose options
Quantity:
| Specifications | |
|---|---|
| Torque(4.8V): | 10.5 kg-cm (148.5 oz/in) |
| Torque(6.6V): | 13.0 kg-cm (180.5 oz/in) |
| Speed: | 0.15 sec (4.8V) 0.12 sec (6.6V) |
| Operating Voltage: | 4.8 ~ 6.6 DC Volts |
| Spline: | 25T |
| Case Colour: | Blue |
| Weight: | 60.0g (2.12 oz) |
| Bearing Type: | Ball Bearing x 2 |
| Motor Type: | DC Motor |
| Gear Type: | Copper & Aluminum |
| Operating Temperature: | -20°C ~ 60°C |
| Working frequency: | 1520 micro seconds / 333hz |
| Size: | 40.7x20.5x39.5mm (1.60x0.80x1.55") |
