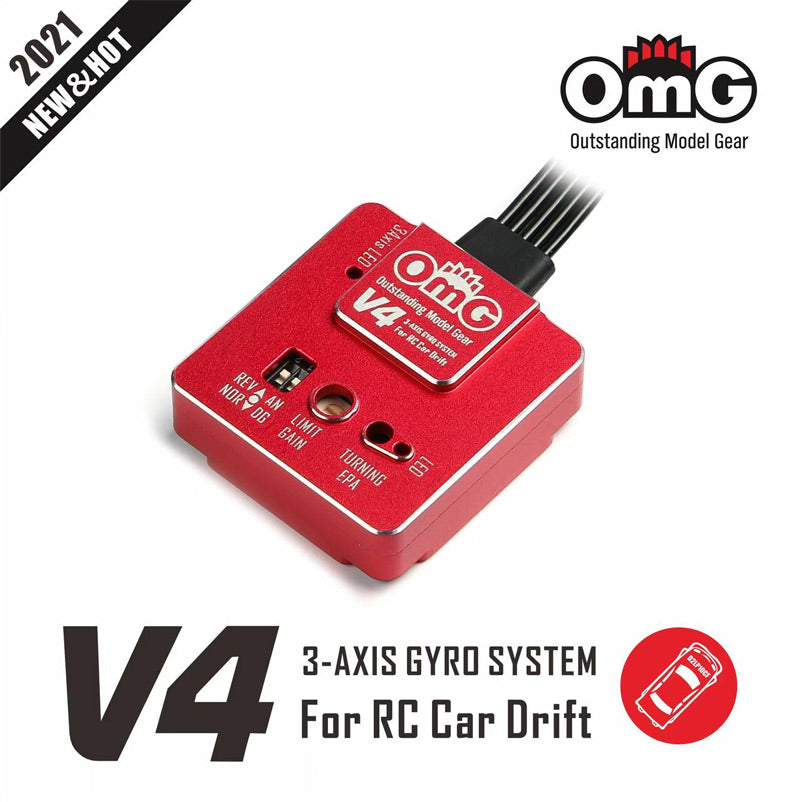

Remote Control Drift Car Accessory
Instruction of Function Switch
1. EPA (Travel Setting)
Press the “SW” switch to power on, yellow LED blinks slowly. Entering to the servo travel setting, rotate the remote control steering wheel to make
servo stop at the desired position (turn left / turn right). Short press “SW” switch, yellow LED blinks 2 times quickly, red LED becomes solid, and green LED blinks slowly, it means current travel has been saved. Then rotate the remote control steering wheel to make the servo stop at the other desired position, short press the switch, yellow LED blinks 2 times quickly, and then the yellow LED turns on, it means current travel has been saved as well. 2 seconds later, the gyro will automatically enter into initialization mode, once completed, gyro is ready for use.
2.Reset ( Travel Restore Default Setting)
Press the “SW” switch to power on and enter into the travel setting mode. After pressing and holding the switch for 3 seconds, the yellow LED starts to blinks alternately. Restore to default after 2 seconds. Then it will enter into initialization mode, once initialization is completed, the gyro is ready for use.
3.Gain signal input or potentiometer adjustment is determined when the power is turned on. If loss of signal happened during using, the last signal is retained. 4.Suitable for most of remote control systems, while plug in the gain wire, it can adjust the sensitivity by transmitter); While do not plug in the gain wire, the gyro's potentiometer can be used for gain adjustment.
5.Suitable for FUTABA S.BUS & SANWA SSR
6.Adjust the gain via gain channel of transmitter ( default for S.BUS input), the range is from -100%~0~+100%.
7.While do not plug in the gain wire, the gyro's potentiometer can be used for gain adjustment, range from 0~100%.
8.After powering on, press the SW for a while, LED2 flash ( next to the SW), then short press the SW, and choose the direction of the X/Y/Z axis.
