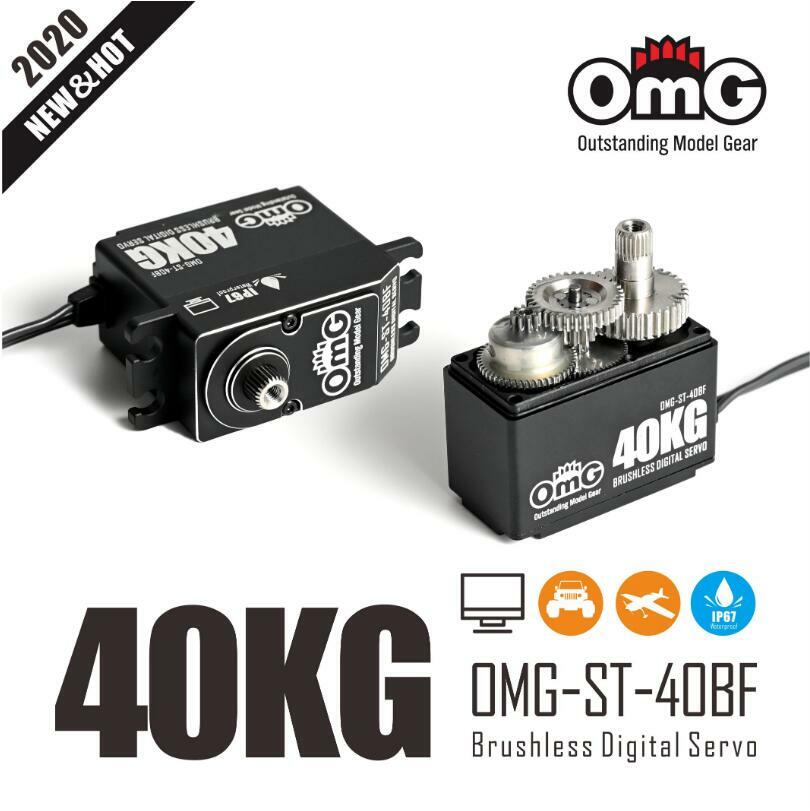

OMG-ST-40BF Servo

Special design for 1:8 RC Vehicle and above 60CC large plane. Standard size full metal brushless motor high voltage servo, full case in CNC precise engraving, matte cover, full steel gear, add PIN 2.0mm at Riveting point ,better in collision avoidance , waterproof, programmable. Competition Class Servo.

Specification:

Operating voltage：7.4-8.4V

Operating speed:

7.4V-0.078sec/60'

8.4V-0.065sec/60'

Dynamic torque:

7.4V-38kg-cm

8.4V-40kg-cm

Horn gear spline：25T

Size：40x20x38mm

Weight：79g

Gear: Stainless steel

Limit angle:180±10°(500-2500μsec)

Rotating direction:180°(1000-2000μsec)

Operating travel :220

Neutral position :1520μsec

Maximum:≈180°(500-2500μsec)

Pules width range :500-2500μsec

Dead band width:2μsec

Connector wire length:315 mm
