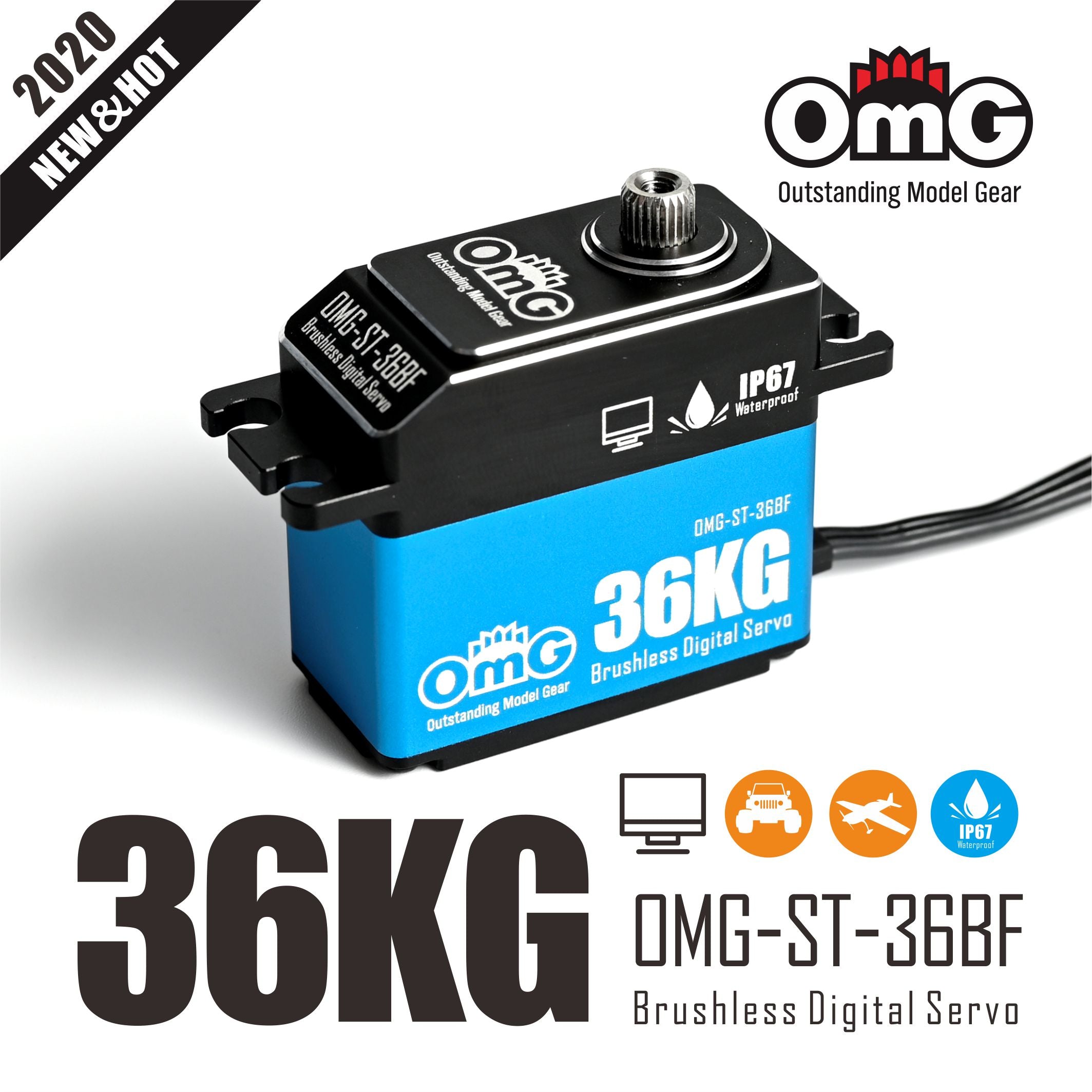

OMG ST-36BF Servo

Standard size full metal high voltage digital servo, full case in CNC precise engraving, matte cover. Fit for 1:10/1:8 crawler, 1:10 RC Vehicle, and airplane above 60CC, waterproof, programmable.

Operating voltage：7.4-8.4V

Operating speed:

7.4V-0.078sec/60'

8.4V-0.075sec/60'

Dynamic torque:

7.4V-36kg-cm

8.4V-37kg-cm

Horn gear spline：25T

Size：40x20x38mm

Weight：77g

Limit angle:180±10°(500-2500μsec)

Rotating direction:180°(1000-2000μsec)

Operating travel :220

Neutral position :1520μsec

Maximum:≈180°(500-2500μsec)

Pules width range :500-2500μsec

Dead band width:2μsec

Connector wire length:315 mm
