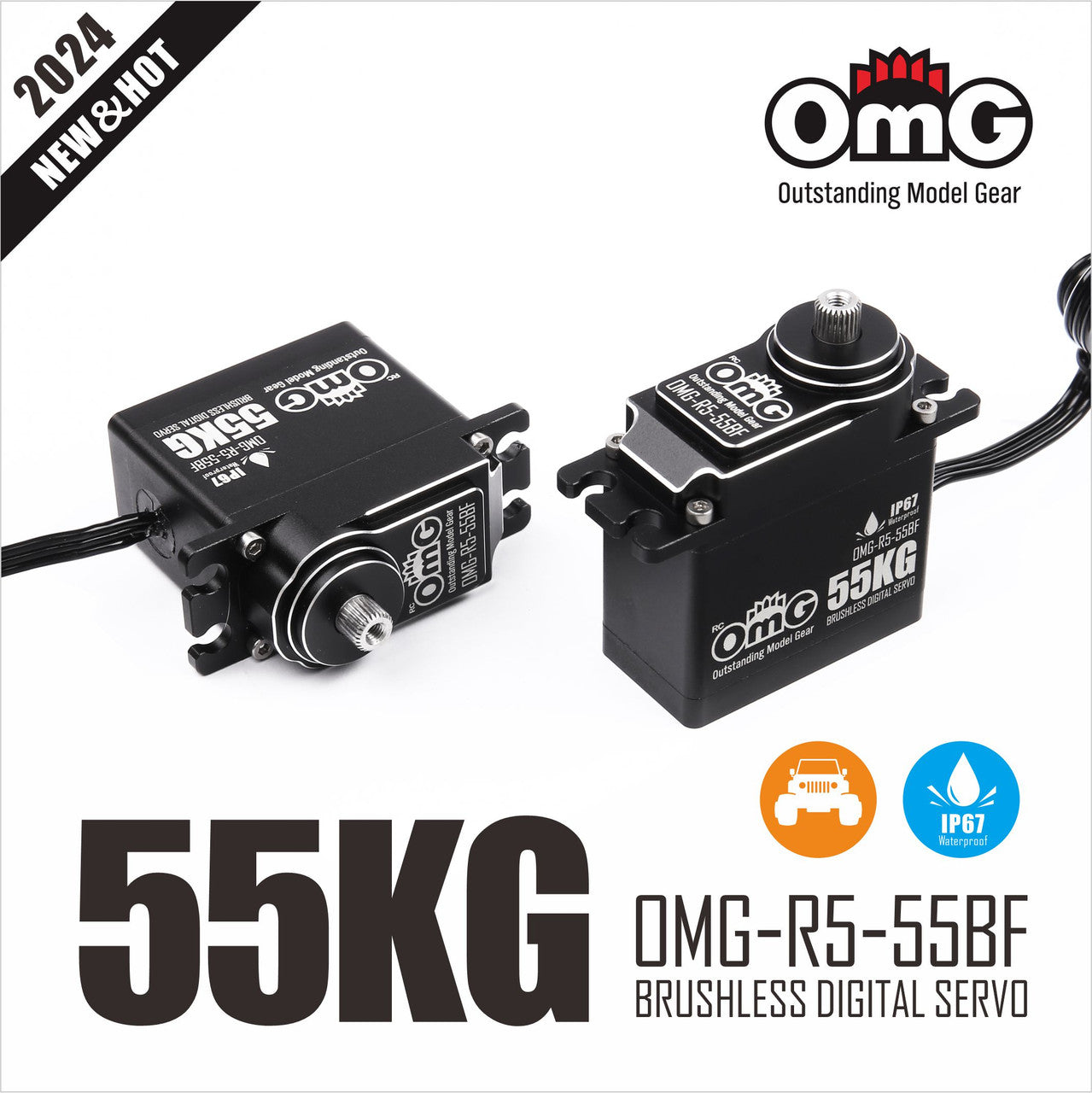

OMG-R5-55BF Standard Size Full Metal Waterproof IP68 55KG Brushless Digital Servo
OMG-R5-55BF Standard Size Full Metal Waterproof IP68 55KG Brushless Digital Servo
57 Simcoe Street South
57 Simcoe Street South
Basement Unit
Oshawa ON L1H 4G4
Canada
Choose options
Product Description
Standard size full metal waterproof IP68 brushless digital servo, inlaid with six ball bearings to prevent gear movement, better impact resisting with 2.5mm main axis and 2.0mm secondary axis. Fit for 1:8 &1:10 RC Vehicle, RC Boat and RC Planes.Operating voltage:5.0-8.4V
Item No.OMG-R5-55BF
Operating speed:
7.4V-0.095sec/60°
8.4V-0.090sec/60°
Stall torque:
7.4V-55kgf.cm(764oz-in)
8.4V-65kgf.cm(903oz-in)
Gear Material:Stainless steel
Horn gear spline:25T Φ5.9
Size: 40.4x21x41.8mm(1.59x0.83x1.65in)
Case Material:Full metal (CNC)
Weight:103g
Bearing:6BB
Motor type:Brushless
Operating Temperature:-15℃~+70℃
Operating travel :≈180±10°
Frequency:1520uS
Refresh Rate:333Hz
Pules width range :500-2500μsec
Dead band width:2μsec
Connector wire length:330mm
Waterproof level:IP68
Programmable:No
