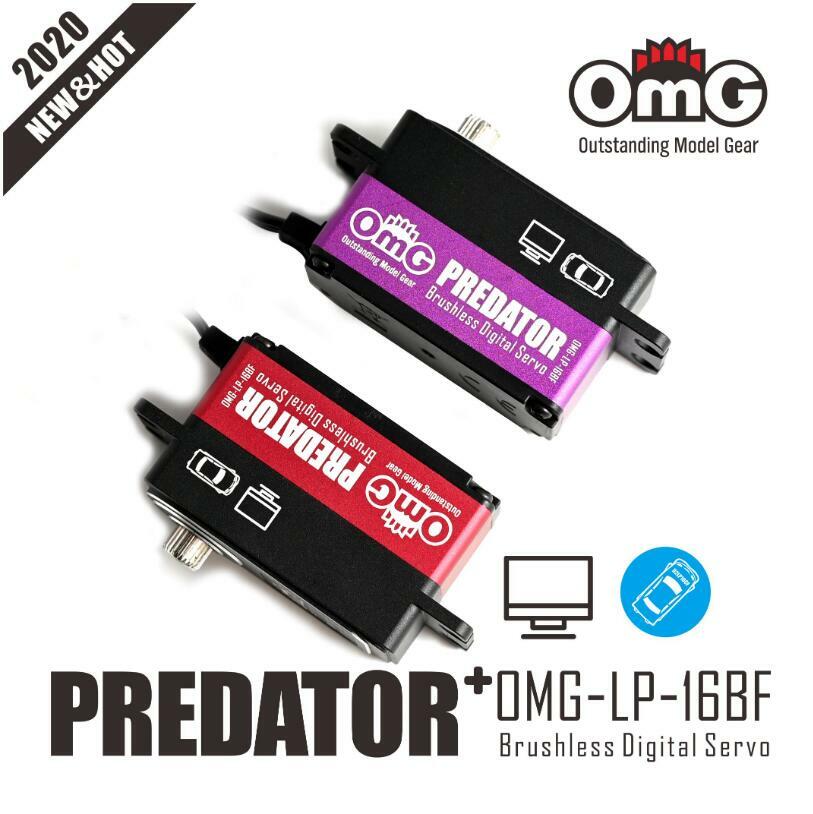

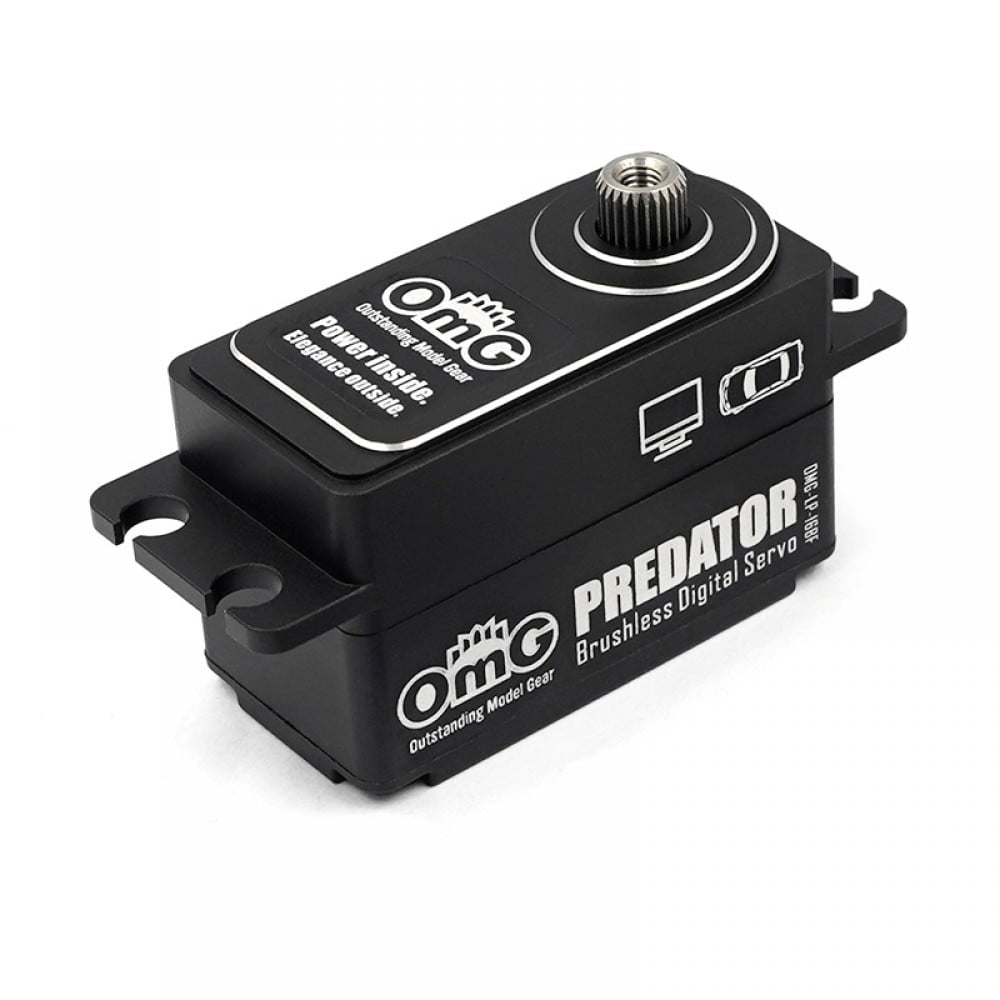

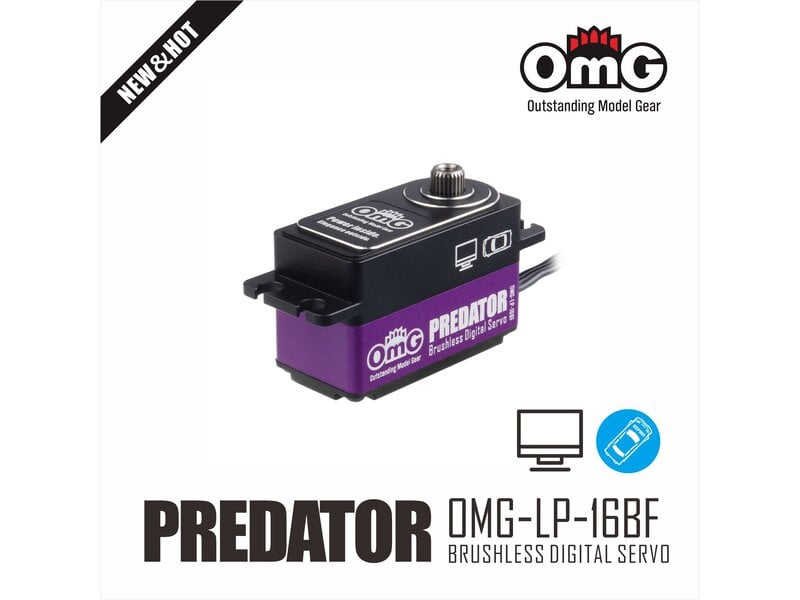

OMG PREDATOR+ OMG-LP-16BF Competition Class Full Metal Brushless Digital servo fit in 1/10 Drift, touring car

Specification:
Model: OMG-LP-19CF
Size: 41*20.5*26mm (low profile)
Weight: 55g
Gear: Alum
Motor: Coreless
Type: Digital
Case: Metal


Speed (sec/60 Degree):
5.0V: 0.068
6.0V: 0.058
7.4V: 0.050
8.4V: 0.045


Torque (kg.cm):
5.0V: 11
6.0V: 12.0
7.4V: 13.5
8.4V: 15



Application:
1/10 drift, touring car, etc



Limit angle:180±10°(500-2500μsec)

Rotating direction:180°(1000-2000μsec)

Operating travel :220

Neutral position :1520μsec

Maximum:≈180°(500-2500μsec)

Pules width range :500-2500μsec

Dead band width:2μsec

Connector wire length:200 mm
