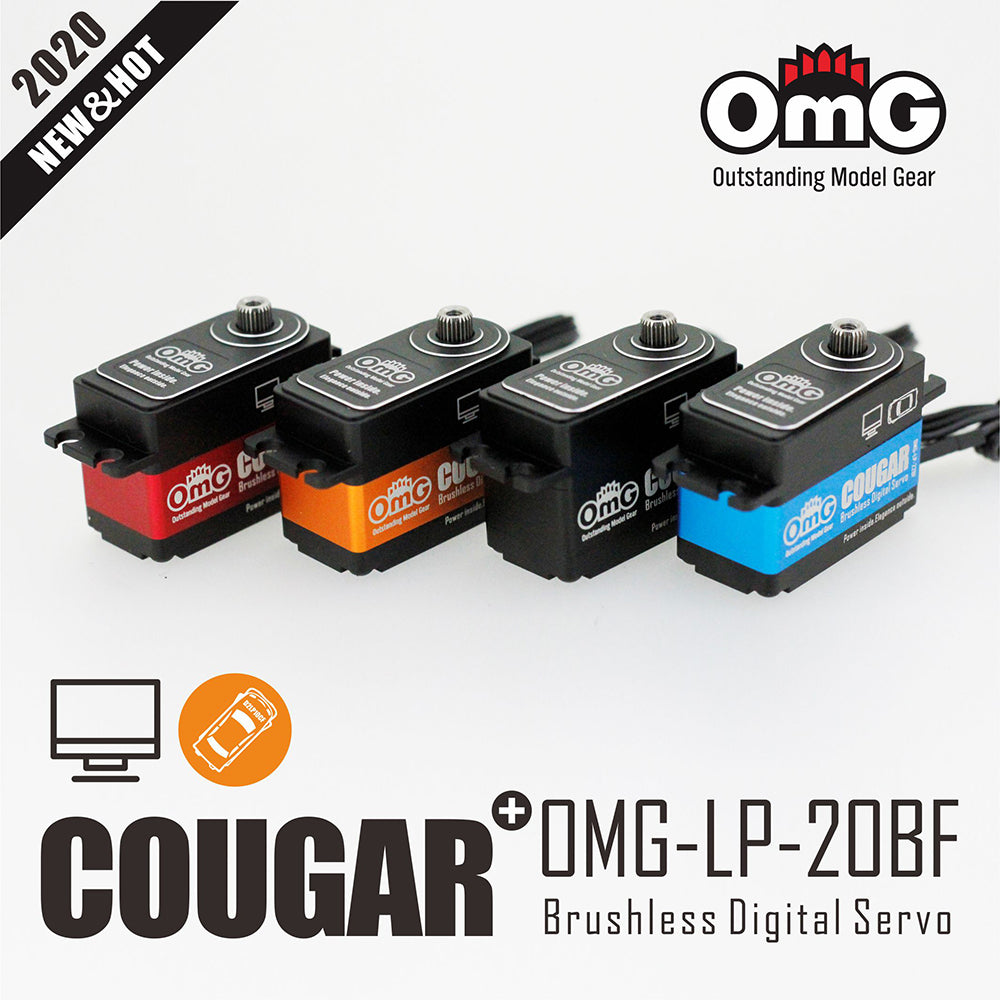

Special design for 1:10 RC touring car/ vehicle, low profile heighten scale, full metal brushless motor high voltage servo, steel gear, programmable, in multiple color, competition version.
Operating voltage：7.4-8.4V
Operating speed:
7.4V-0.068sec/60'
8.4V-0.060sec/60'
Dynamic torque:
7.4V-20kg-cm
8.4V-25kg-cm
Horn gear spline：25T
Size：41x20.5x29mm
Weight：60g
Limit angle:180±10°(500-2500μsec)
Rotating direction:180°(1000-2000μsec)
Operating travel :220
Neutral position :1520μsec
Maximum:≈180°(500-2500μsec)
Pules width range :500-2500μsec
Dead band width:2μsec
Connector wire length:200 mm
