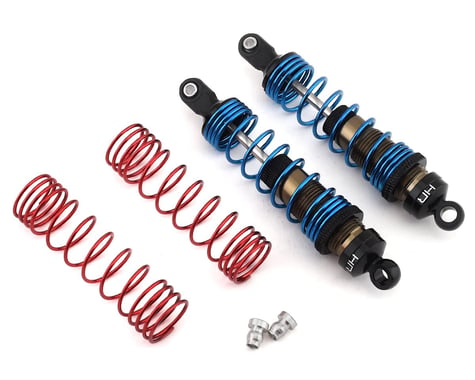

Hot Racing 90mm Aluminum Threaded Shocks fit the front of most 1/10 scale 2WD short course trucks.
Features:
- Threaded shock bodies for easy, precision, and repeatable right height and pre-load adjustment
- CNC machined 6061-T6 aluminum bodies, caps, collars, and spring retainers
- Bladder style shock for easy and consistent building
- Hard anodized body for smooth action and wear resistance
- Two hole 10mm PTFE pistons
- Two spring sets
- Requires silicon shock oil (30wt is usually a good starting point)
Length eye-to-eye: 90mm
Diameter of body: 13mm
Piston diameter: 10mm
Blue stiff springs: 12 coil, 1.37mm wire 6.8lb rate
Red soft springs: 12 Coil 1.09mm wire, 4.2lb rate
Pivot ball hole diameter: for M3 or 4-40 screws
Includes:
- (2) assembled shocks
- (2) blue springs
- (2) red springs
- (2) Shock Mounting Flanges
