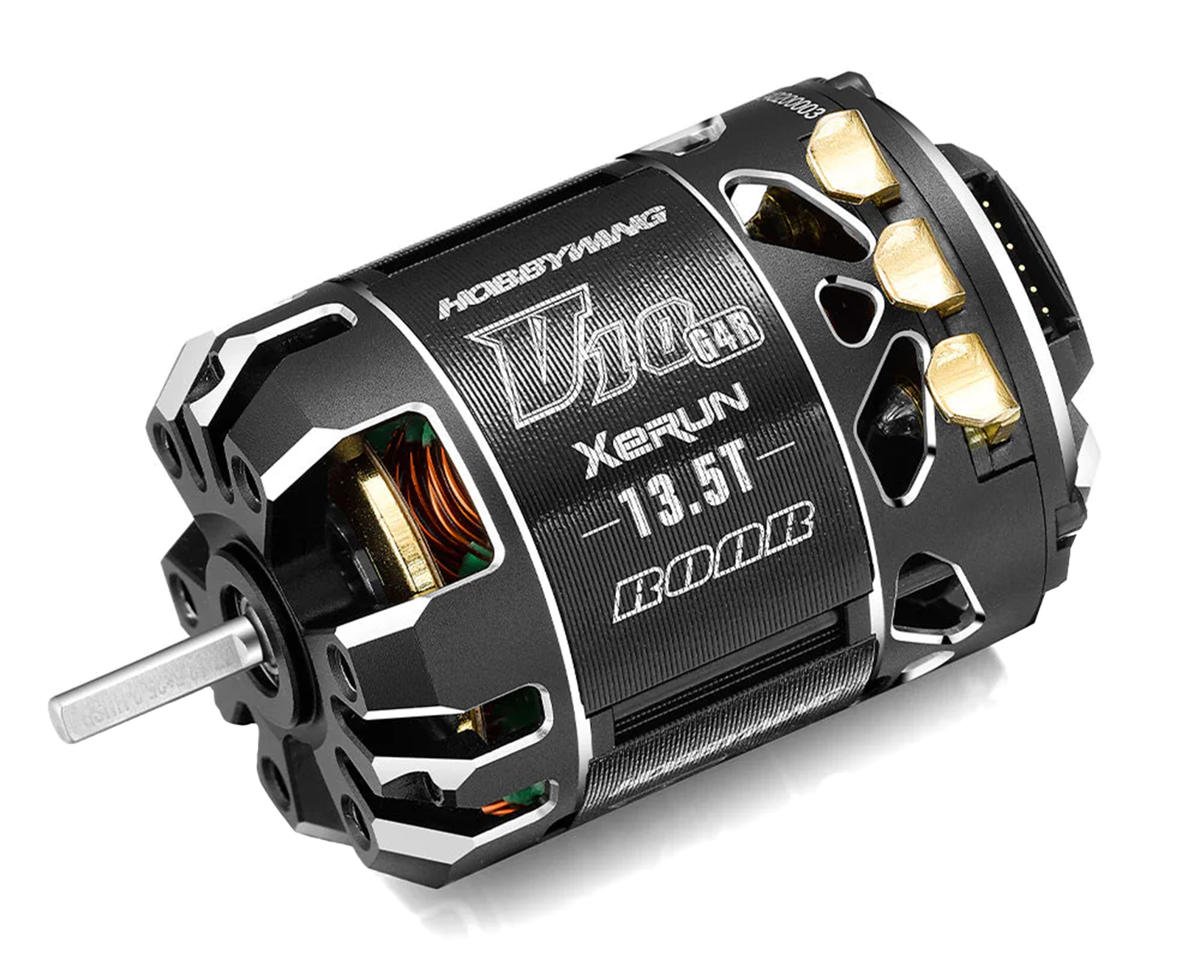

Hobbywing Xerun V10 G4R Competition Stock Brushless Motor (13.5T) (ROAR)

Motor Overview:

Hobbywing Xerun V10 G4R Competition Stock Brushless Motor. Specially designed for 1/10 and 1/12 ROAR Stock racing, this Xerun V10 G4R is equipped with a high-performance stator core, built-in high precision Hall sensor combined with the high precision and balanced rotor that guarantees outstanding linearity and smoothness, innovative outer diameter structure of fully exposed stator core maximizes the heat dissipation and dual sensor interface design to meet various wiring/layout requirements! Making this Xerun V10 G4R the ultimate ROAR approved weapon of choice for 1/10 and 1/12 Stock racing

NOTE: Due to differences in competition rules, there are two versions of the motor, standard (G4) version for EFRA rules and ROAR (G4R) version for ROAR rules.

Features:

• Specially designed for 1/10 -1/12 Stock racing
• High-performance stator core
• Built-in high precision Hall sensor combined with the high precision and balanced rotor that guarantees outstanding linearity and smoothness
• Innovative outer diameter structure of fully exposed stator core maximizes the heat dissipation
• Rear end of the motor is a big opening structure to further improve the heat dissipation effect
• Dual sensor interface design to meet various wiring/layout requirements
• Widened copper bar spacing for easier wire soldering
• High precision and high strength bearings, and copper solder tabs

Specifications:

• ROAR Approved: Yes
• Turns: 13.5T
• kV Rating: 4100kV
• Outer Diameter: 35.8mm
• Length: 51.3mm
• Shaft Diameter: 3.175mm
• Weight: 158g
• Poles: 2
• Front Bearing: 9x4x4mm
• Rear Bearing: 8x3x4mm
• No Load Current: 5.4A
• Adjustable Timing: 20-60 degrees
• Applications: 1/10th Stock Class Racing
• Input Voltage: 1-2S LiPo (3.2-7.4V)

Includes:

• (1) Xerun V10 G4R Competition Stock Brushless Motor
• (1) User Manual
