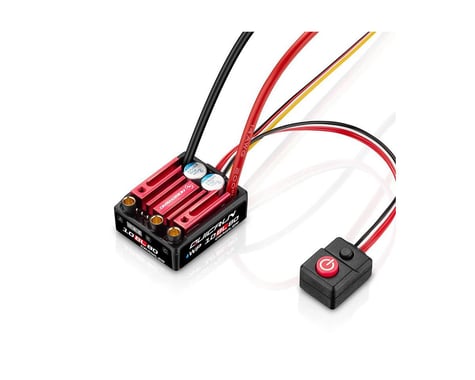

hoQuicRun WP 10BL80 Overview:
The Hobbywing QuicRun WP 10BL80 Waterproof Rock Crawler Sensorless Brushless ESC delivers the perfect balance of power, control, and reliability for 1/10-scale rock crawlers. Its compact 36×30×15.5mm size allows for easy installation in tight spaces while still providing strong 80A continuous and 240A peak current performance. Designed to excel at low-speed crawling, it offers smooth throttle response and excellent torque for precision control. The fully waterproof design ensures dependable performance in mud, water, and harsh weather conditions, making it a versatile choice for outdoor adventures.
About the QuicRun WP 10BL80 ESC
Improved Heat Dissipation and Durability
The WP 10BL80 is built for both brushed and brushless crawler setups, giving hobbyists flexibility to choose their preferred motor type. Its advanced switch-mode BEC offers adjustable output (6V/7.4V/8.4V) to power high-torque and high-voltage servos, while an independent programming port makes setup and tuning straightforward. Real-time drag brake adjustment via a transmitter AUX channel allows fine control for steep descents, and integrated protection systems keep your equipment safe in demanding conditions. With its compact form factor, waterproof construction, and broad compatibility, this ESC is ready to handle the toughest trails.
Features
- Supports both sensorless brushless and brushed motors
- Compact and lightweight design for easy installation
- Fully waterproof construction for all-weather use
- Adjustable switch-mode BEC (6V/7.4V/8.4V) for powerful servos
- Real-time drag brake adjustment via transmitter AUX channel
- Independent programming port for quick and simple setup
- Multiple protection systems for safety and reliability
- Delivers smooth low-speed torque for precise crawling control
Includes:
- (1) WP 10BL80 Crawler ESC with factory-installed XT60 plug
- (1) Decal Sheet
- (1) Manual
- (1) Heatshrink Kit
- (1) Double-Sided Tape
- Zip Ties
Specifications:
| Suggested Application | 1/10 Crawler |
|---|---|
| Motor Type | Brushless/Brushed |
| Input Voltage | 2-4S |
| Continuous Current | 80A |
| Burst Current | 240A |
| Dimensions (LxWxH) | 1.42x1.18x0.61in (36x30x15.5mm) |
| Weight | 1.69oz (47.8g) |
| Motor Limits | - |
| BEC Voltage | 6.0/7.4/8.4V |
| BEC Continuous Current | 5A |
| BEC Peak Current | - |
| Motor Connector | 3.5mm Bullet |
| Battery Connector | XT60 |
| Programming | Button/Programmer |
