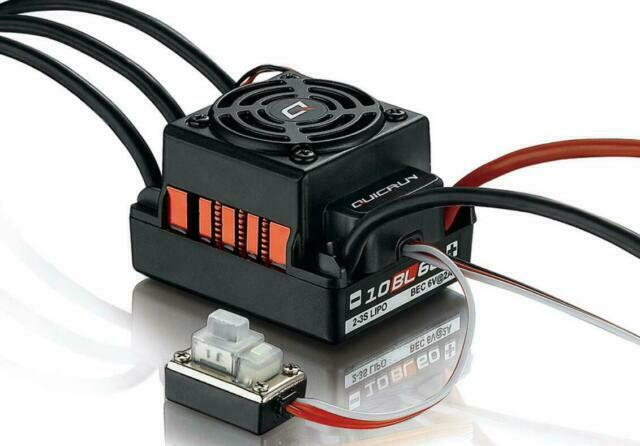

HobbyWing QUICRUN 10BL60 Brushless ESC
Pickup currently unavailable at 57 Simcoe Street South
HobbyWing QUICRUN 10BL60 Brushless ESC
57 Simcoe Street South
Pickup currently unavailable
57 Simcoe Street South
Basement Unit
Oshawa ON L1H 4G4
Canada
Choose options
Water-proof and dust-proof for all-weather races.
Please make sure to uninstall the cooling fan before using this ESC in waterClean and dry it soon after the use for avoiding the connectors get rusty.)
|
Model / SKU
|
QUICRUN-WP-10BL60 / 30107100
|
|
Cont./Peak Current/ Resistance
|
60A/360A/0.001Ω |
| Motor Type Supported | Sensorless Brushless Motor |
| Car Applicable | 1:10 On-road/Off-road/Buggy/Monster |
| Motor Limit | For 2S Lipo or 6 cells NiMH: 1. On-road: 3656-size or smaller motor with the KV<6000 2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<4000 For 3S Lipo or 9 cells NiMH: 1. On-road: 3656-size or smaller motor with the KV<4000 2. Off-road/Buggy/Monster: 3656-size or smaller motor with the KV<3000 |
| Battery |
4-9 Cells NiMH
2-3S Lipo |
| BEC Output | 6V/2A (Linear Mode) |
| Size/ Weight | 48.5(L)*38(W)*32(H) / 90g |
| Wires | Power Leads Red-14AWG-150mm*1/Black-14AWG-150mm*1 Motor Wires Black-14AWG-100mm*3 |
|
|
4mm Gold Bullet Connector (Female) |
| External Program Port | Available |
| Working voltage of Fan | From battery directly without regulating |
Parameter List of QUICRUN 10 (WP-10BL60)
*letters in blue in the form indicate the factory default settings
| Programmable Items | Option 1 |
Option 2 |
Option 3 |
Option 4 |
Option 5 |
Option 6 |
Option 7 | Option 8 | Option 9 |
| 1. Running Mode Note 1 |
Fwd/Br | Fwd/Rev/Br | Fwd/Rev | ||||||
| 2. Drag Brake Force | 0% | 5% | 10% | 20% | 40% | 60% | 80% | 100% | |
| 3. Low Voltage Cutoff | Disable | 2.6V /Cell |
2.8V /Cell |
3.0V /Cell |
3.2V /Cell |
3.4V /Cell |
|||
| 4. Start Mode (Punch) | Level 1 | Level 2 | Level 3 | Level 4 | Level 5 | Level 6 | Level 7 | Level 8 | Level 9 |
| 5. Max. Brake Force | 25% | 50% | 75% | 100% | Disable | ||||
| 6. Max. Reverse Force | 25% | 50% | 75% | 100% | |||||
| 7. Initial Brake Force | =Drag brake force | 0% | 20% | 40% | |||||
| 8. Throttle Range | 6% (Narrow) |
9% (Normal) |
12% (Wide) |
　 | |||||
| 9. Timing | 0 deg |
3.75 deg |
7.5 deg |
11.25 deg |
15.0 deg |
18.75 deg | 22.5 deg | 26.25 deg | |
| 10. Overheat Protection | Enable | Disable | |||||||
| 11. Motor Rotation | CCW | CW | |||||||
| 12.Cell Count | Auto-identification | 2S LiPo | 3S LiPo | 4S LiPo | 5S LiPo | 6S LiPo |
Note 1: Fwd=Forward, Rev=Reverse, Brk=Brake
-
External programming port, easy to connect to the LED Program Card (purchase separately) when setting the ESC
- Proportional brake with 4 steps of maximum brake force adjustment and 8 steps of drag brake force adjustment.
- 9 steps of acceleration (/punch) adjustment from “soft” to “Very aggressive” to fit for different kinds of models, tires and tracks.
- Multiple protections: Low voltage cut-off protection / Over-heat protection / Throttle signal loss protection / Motor lock-up protection.
- One-button (the “SET” button on the ESC) to set the ESC, and easy to reset all parameters to the factory default settings.
- Compatible with the optional device ---- the portable Digital LED Program Card, especially convenient for outdoor use.
