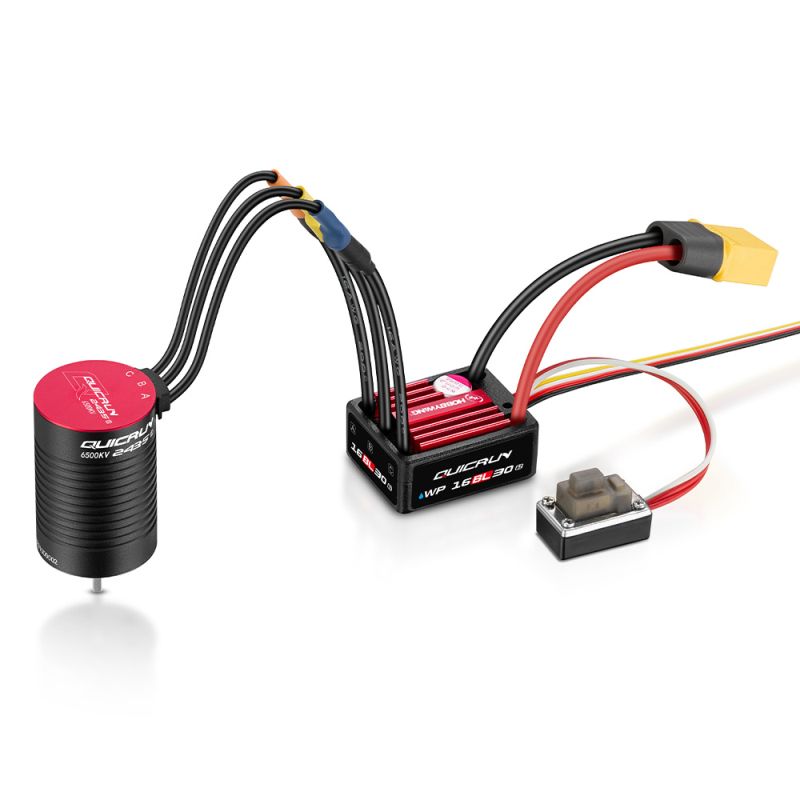

Hobbywing Quickrun 16BL30 G2 ESC & 2435SL 4500KV G3 Motor Combo

• Excellent performance, specially designed for 1/16 & 1/18 On-road & Off-Road. Designed to pair with Quicrun 2030/2435 G2 Motor
• The ESC features intelligent freewheeling technology, delivering higher drive efficiency, lower operating temperatures, improved stability, and greater reliability.
• Compared to the previous generation 16BL30 ESC, the G2 ESC is significantly smaller: 8.3% shorter in length, 7.1% narrower, and 16.7% lower in height. This design is compact and makes installation easier and allows for cleaner wiring on the chassis.
• Compared to the G1 ESC, the BEC's continuous current has been upgraded from 1A to 2A, with a peak current of up to 4A. The output voltage can be switched between 6V and 7.4V. Easily powering high-torque and high voltage servos. This provides faster response and more precise control.
• IP67-rated protection allows it to easily handle harsh environments such as rain, sand, and muddy roads, ensuring reliable performance without environmental limitations.

Motor Features:

• High Efficiency means more POWER while keeping TEMP low!
• 4 pole rotor design for stronger torque, the motor has strong explosive force.
• Compared with the previous generation of motors, the output power and efficiency are increased by more than 4%, and the motor temperature is effectively reduced under the same load.
• 0.2mm thick silicon steel laminations, high strength explosion-proof rotor, high-temperature resistant coil, and imported high-precision and high-quality bearings make the motor super durable.

• High Efficiency means more POWER while keeping TEMP low!
• 4 pole rotor design for stronger torque, the motor has strong explosive force.
• Compared with the previous generation of motors, the output power and efficiency are increased by more than 4%, and the motor temperature is effectively reduced under the same load.
• 0.2mm thick silicon steel laminations, high strength explosion-proof rotor, high-temperature resistant coil, and imported high-precision and high-quality bearings make the motor super durable.

Motor Specifications:

• LiPo Cells: 2S
• No-load Current (A): 2.1A / 4500kv
• Dia / Length: D=24mm (0.94") L=36mm (1.42")
• Shaft Dia / Length: D=2mm (0.08") L=12mm (0.47")
• Bearing size: D8*D3*T4
• Pole: 4
• Weight: 61.2g
• Applications: 1/16 & 1/18 On-road, Off-road
