Gmade 93mm XD Diaphragm Shock Set (2)
Quantity:
Pickup available at 57 Simcoe Street South
Usually ready in 1 hour
Gmade 93mm XD Diaphragm Shock Set (2)
57 Simcoe Street South
Pickup available, usually ready in 1 hour
57 Simcoe Street South
Basement Unit
Oshawa ON L1H 4G4
Canada
Choose options
Quantity:
Quantity:
- Fits 1/10 scale crawlers & trucks, 1/10 scale EP buggys and Short course trucks (such as Axial SCX10, Associated B4/B44 and SC10 4x4)
- CNC machined Aluminum shock bodies and caps
- Titanium gray anodized shock bodies and caps
- Lower shock ends includes red anodized aluminum balls
- Fully threaded for rapid adjustment
- Delrin pistons
- 3.5mm thick shock shafts
- Shaft exits through double O-ring seals
- Easy load shock seal assembly
- Laser engraved for authenticity
Specifications:
Length (Mounting hole to hole): 93mm
Shock Body Diameter: 14mm
Spring Diameter: 19mm
Spring Length: 58mm
Full Shaft Travel Range: 26mm (without Rubber bump stop)
Shaft Diameter: 3.5mm

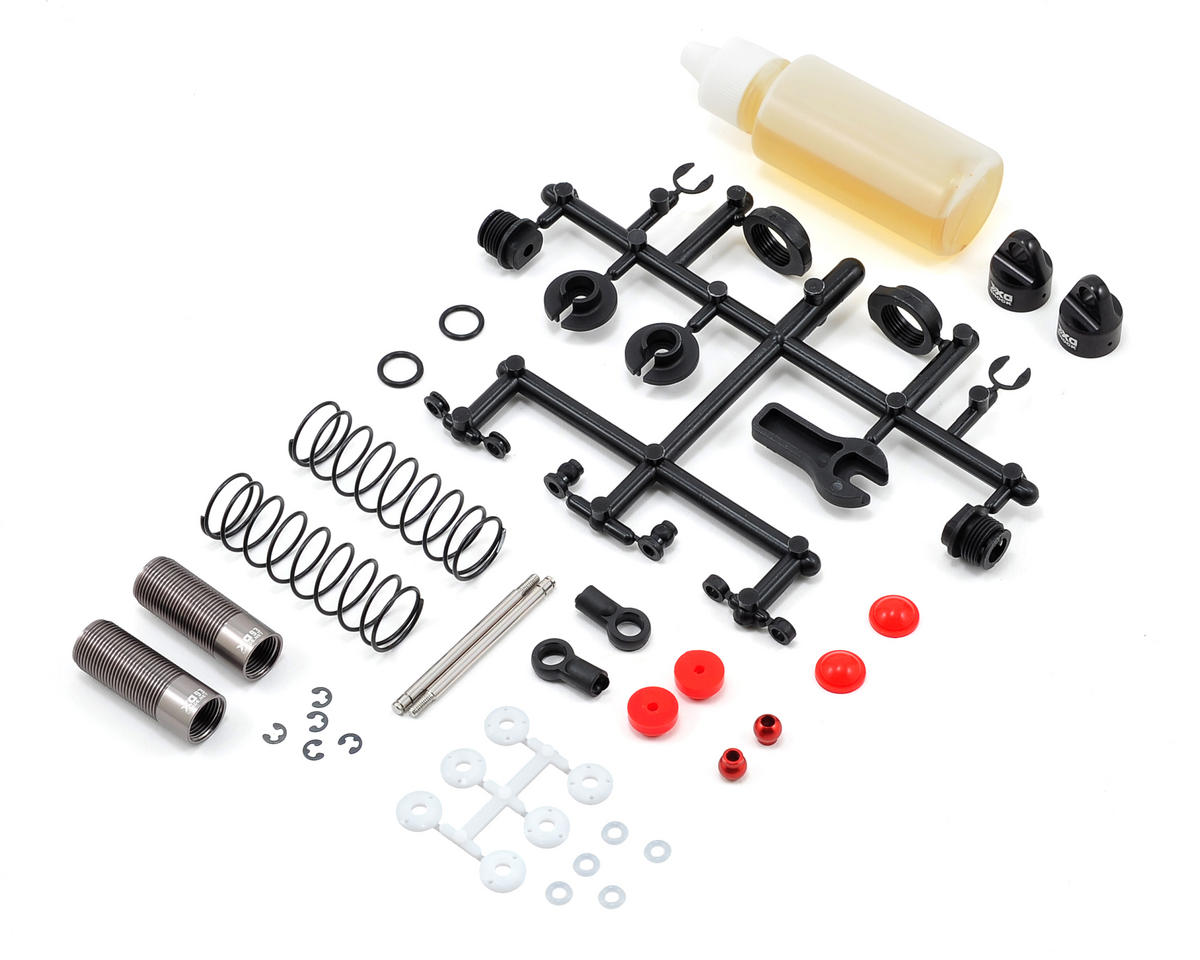

Includes:
- (2) Titanium gray anodized aluminum shock bodies
- (2) Titanium gray anodized aluminum shock caps
- (2) Diaphragms
- (2) Shock springs
- All necessary hardware to finish the shocks
- Assembly instructions
- Bottle of shock oil
