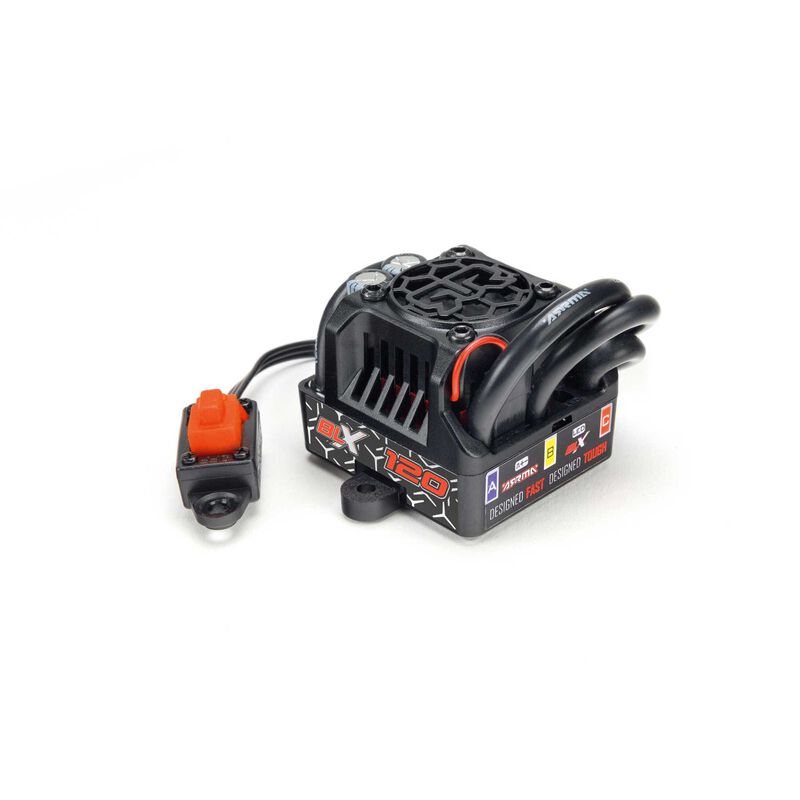

Arrma BLX120 Brushless 4S ESC

Arrma BLX120 Brushless 4S ESC

Regular price
Sale price
Regular price
Sold out
Unit price


The BLX120 120A waterproof ESC provides consistent power control and is 4S LiPo ready.


Fitted with super-reliable EC5 connectors and sporting a built-in cooling fan for reduced heat during intense driving action, the BLX120 ESC has over voltage protection, and a two-stage LiPo cut off for added cell management.

The fitted 12AWG high-quality wires and 6V BEC unit are combined with a three mode throttle profile (FWD/REVERSE/BRAKE) to provide the ultimate driving experience.


Battery usage 3S LiPo (11.1V) or 4S LiPo (14.8V)
Low Voltage Cut-Off (LVC) 3.4V per cell
Thermal Protection Temperature 125°C / 257°F
Over-Voltage Protection Over 17.2V
BEC Voltage 6V
BEC Current 3A
ESC Length 43mm / 1.69"
ESC Height 34mm / 1.34"
ESC Width 54.5mm / 2.15" (Including hold-down tabs)
ESC Weight 150g / 5.3 oz
Receiver Wire Length 170mm / 6.70"
Battery Wire Length

225mm / 8.86"

Motor Wire Length (Including Connector) 200mm / 7.87"
Switch Length 21mm / 0.83"
Switch Width 13.3mm / 0.52"
Switch Height 16mm / 0.63"
Motor Bullet Connector Size 4mm / 0.16"
Wire Specifications 12AWG
ESC Battery Connector Type 2xEC5


1 x BLX120 Brushless 4S ESC

1 x Loop Connector
