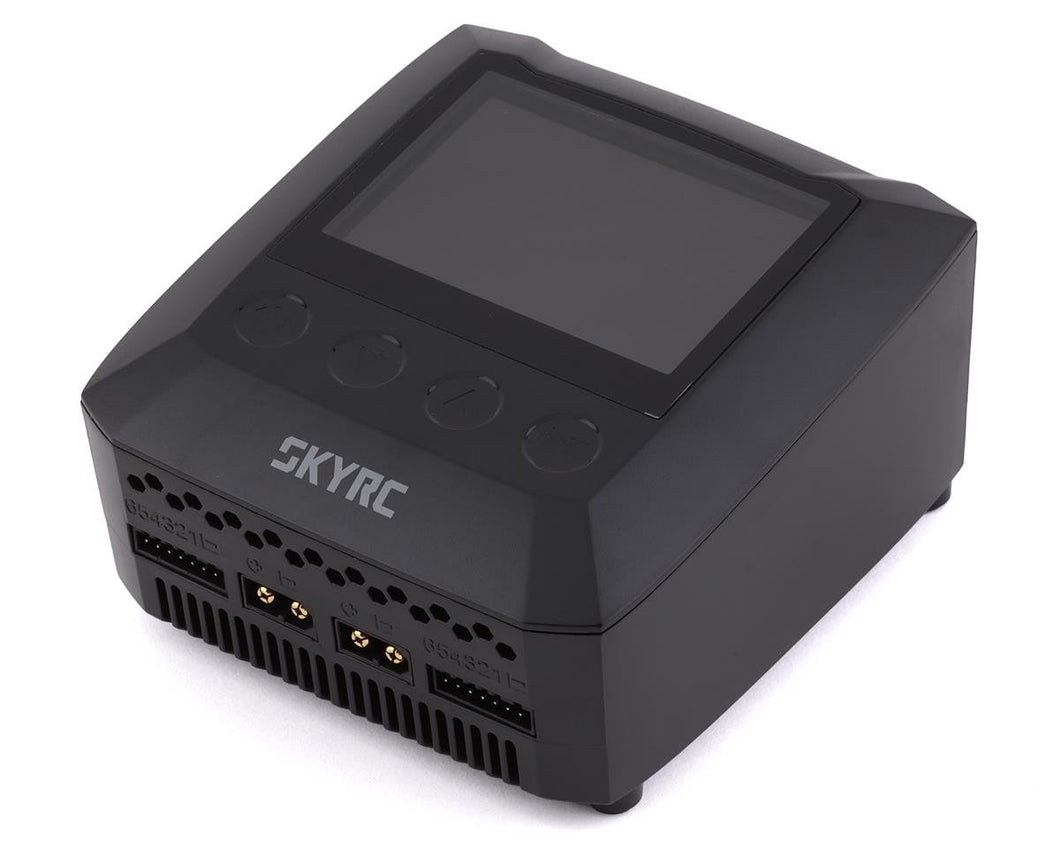

SkyRC B6 Nano Duo AC Battery Charger (6S/15A/100W X 2)

SkyRC B6 Nano Duo AC Battery Charger (6S/15A/100W X 2)

Regular price
$199.99
Sale price
$199.99
Regular price
Sold out
Unit price
per

SKU:SK-100146-03

Powerfull, App Controlled Dual Port Battery Charger w/Scan to Go Funtionality

The SkyRC B6 Nano Duo AC Battery Charger features an impressive amount of power, packed inside a small footprint. This helps to take up less space on your workbench, while at the same time offering a host of useful features. The APP Control and Scan to Go functions offer cutting edge functionality, with 100W of power to each channel. Plus, if only one battery is being charged, the system will deliver up to 200W, helping to create an incredibly powerful charging experience.




Features:

  • Large Display: No more scrolling through a complex menu. What you need to see is displayed directly on the large 72.4x51.4mm screen. A black display with white characters make it easy to read at any angle.
  • Capacitive Touch Controls: The unique touch buttons are sturdy and durable, offering fast response and easy operation.
  • Dual Output: B6 Nano Duo allows you to charge two different battery packs simultaneously. When charging two batteries at the same time, the system If only one channel is working, the power can be up to 200W. If two channels are working, it is 100W per channel.
  • Powerful, High Speed Micro-Controller: ARM® Cortex®-M4F 32 bit high speed processor improves data processing capability up to 20 times. Industry leading 2.5V-5.5V wide range input voltage offers strong anti-interference ability.
  • Smart & Efficient Cooling System: Temperature controlled 16000rpm high speed bearing cooling fan effectively circulates air through the extruded aluminum heat sink, helping to keep the charger cool.
  • Universal Operation - Worldwide:  100-240V AC Power input. No need for a voltage converter.
  • Intuitive Android & iOS App: SkyCharger - supports 11 languages and can be downloaded from Google Play or the App Store. The app helps to make upgrading a breeze. With Over The Air (OTA) update capability, firmware can be updated wirelessly to your charger through your mobile device.
  • Certified: B6 nano products comply with the regional specific laws and regulations. SkyRC products are designed, tested and approved to meet worldwide standards for Product Safety, Electromagnetic Compatibility and other regulatory compulsory requirements, when used for their intended purpose.

Specifications:

Case Material: Plastic
Case Size: 127x115x71mm
Weight: 561g
Display Type: LCD
Reading Voltage Range: 0.1-26.1V/cell
External Port: 2-6S Balance Socket-XH, Battery Socket, AC Input
Controls: Four Buttons
AC Input Voltage 100-240V
Charge Wattage: 200W(100WX2)
Discharge Wattage: 8W
Battery Types/Cells: LiPo/LiIon/LiFe/LiHV, NiMH/NiCd, Pb
Charge Current: 0.1A-15.0A
Discharge Current: 0.1A-3.0A
Balance Cells: 2-6 cells
Balance Current: 1000mA/cell Max
Safety Timer: 1-720minutes off
Charge Method: CC/CV for lithium types and lead(Pb) batteries Delta-peak Sensitivity for NiMH/NiCd.
