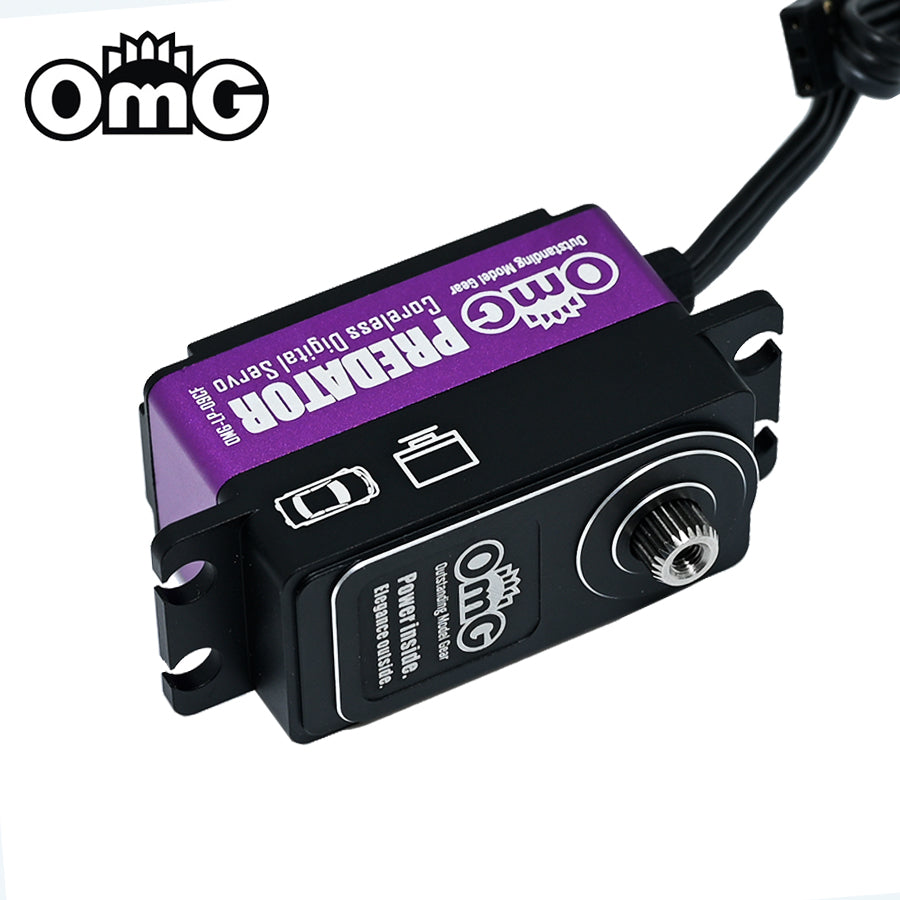

Special design for 1:10 RC drift, low profile, full metal coreless motor high voltage servo, steel gear, programmable,multiple colors, standard version.
Operating voltage：6.0-7.4V
Operating speed:
6.0V-0.085sec/60'
7.4V-0.082sec/60'
Dynamic torque:
7.4V-9.7kg-cm
8.4V-10.5kg-cm
Horn gear spline：25T
Size：41x20.5x26mm
Weight：55g
Limit angle:180±10°(500-2500μsec)
Rotating direction:180°(1000-2000μsec)
Operating travel :220
Neutral position :1520μsec
Maximum:≈180°(500-2500μsec)
Pules width range :500-2500μsec
Dead band width:2μsec
Connector wire length:200 mm
